P/N |
Size/mm |
LED/Qty/m |
Brand |
Luminance/LED |
Angle |
Voltage |
Wattage/M |
IP Rate |
|
MDR-C3527-100-120X |
5000*10 |
3527/120pcs |
Epistar |
7-8LM |
140 |
DC12V/24V |
9.6-19.2W |
IP20/68 |
Features :

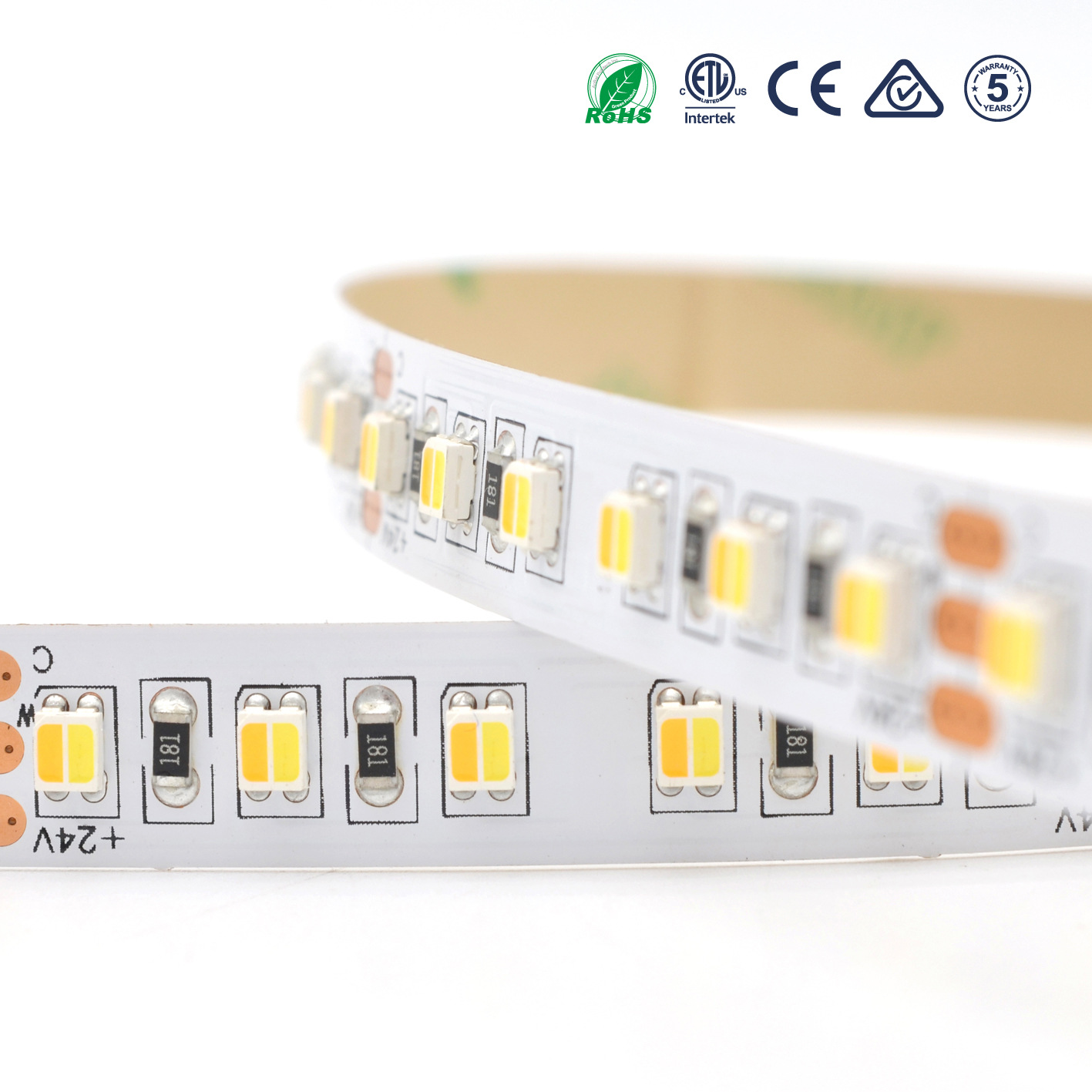

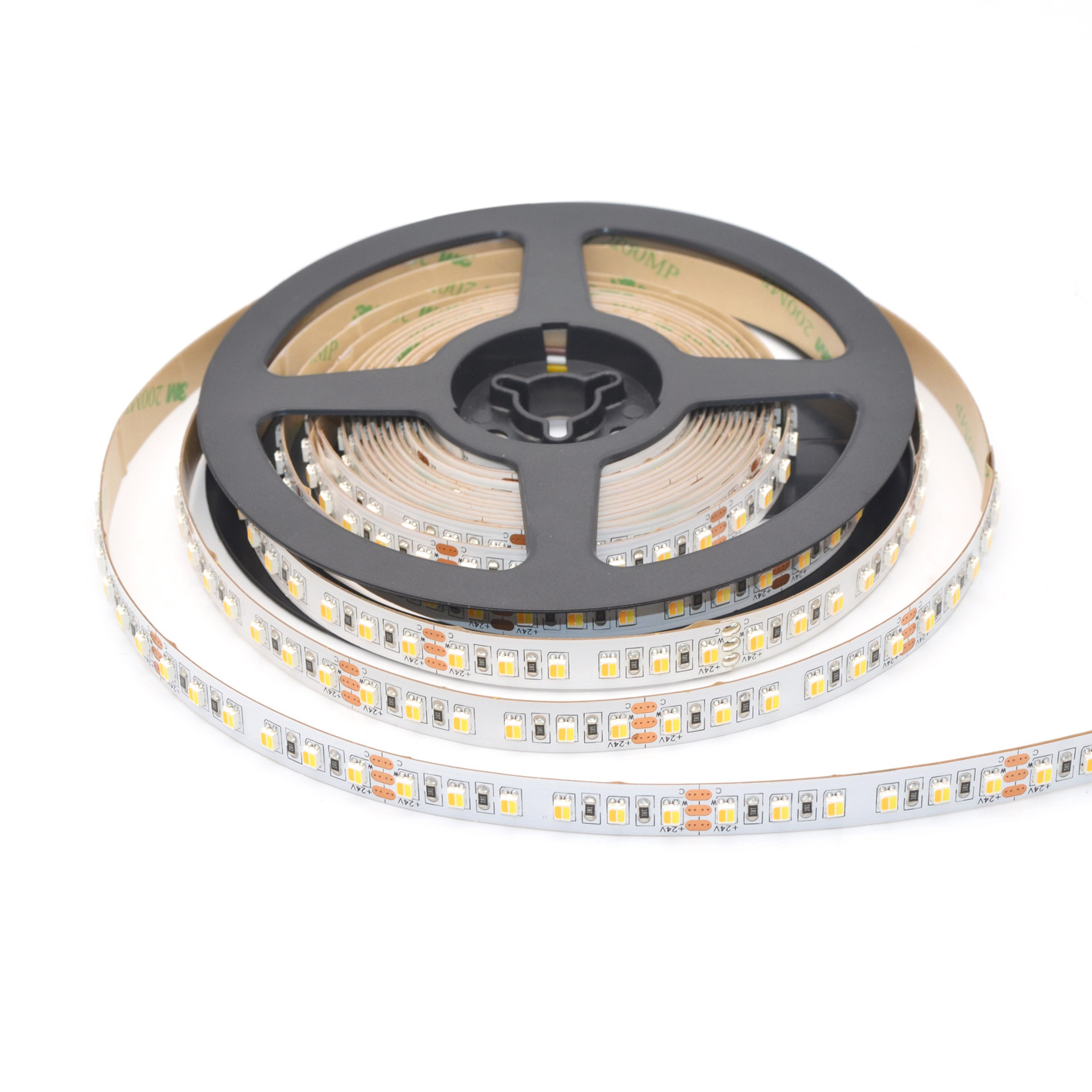

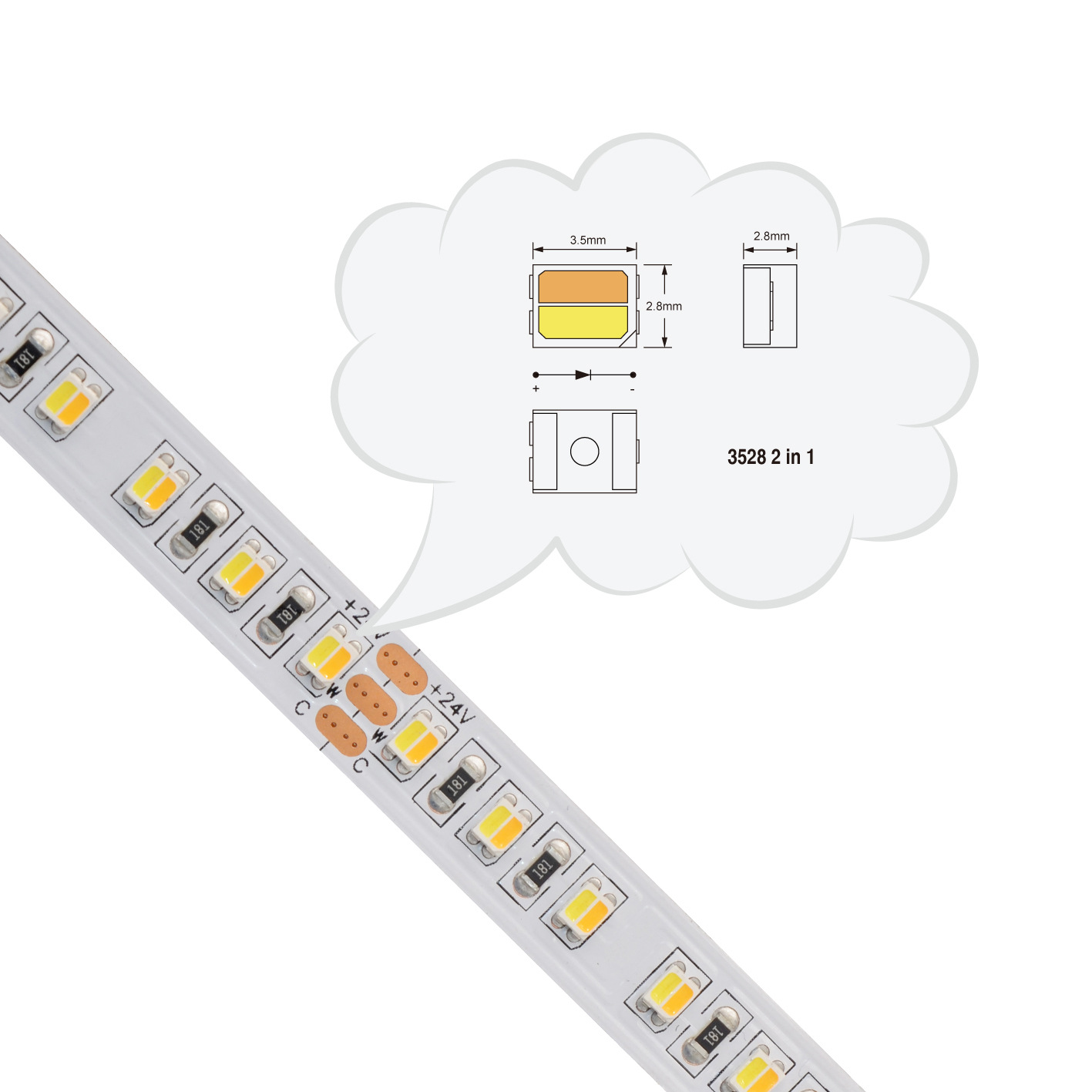

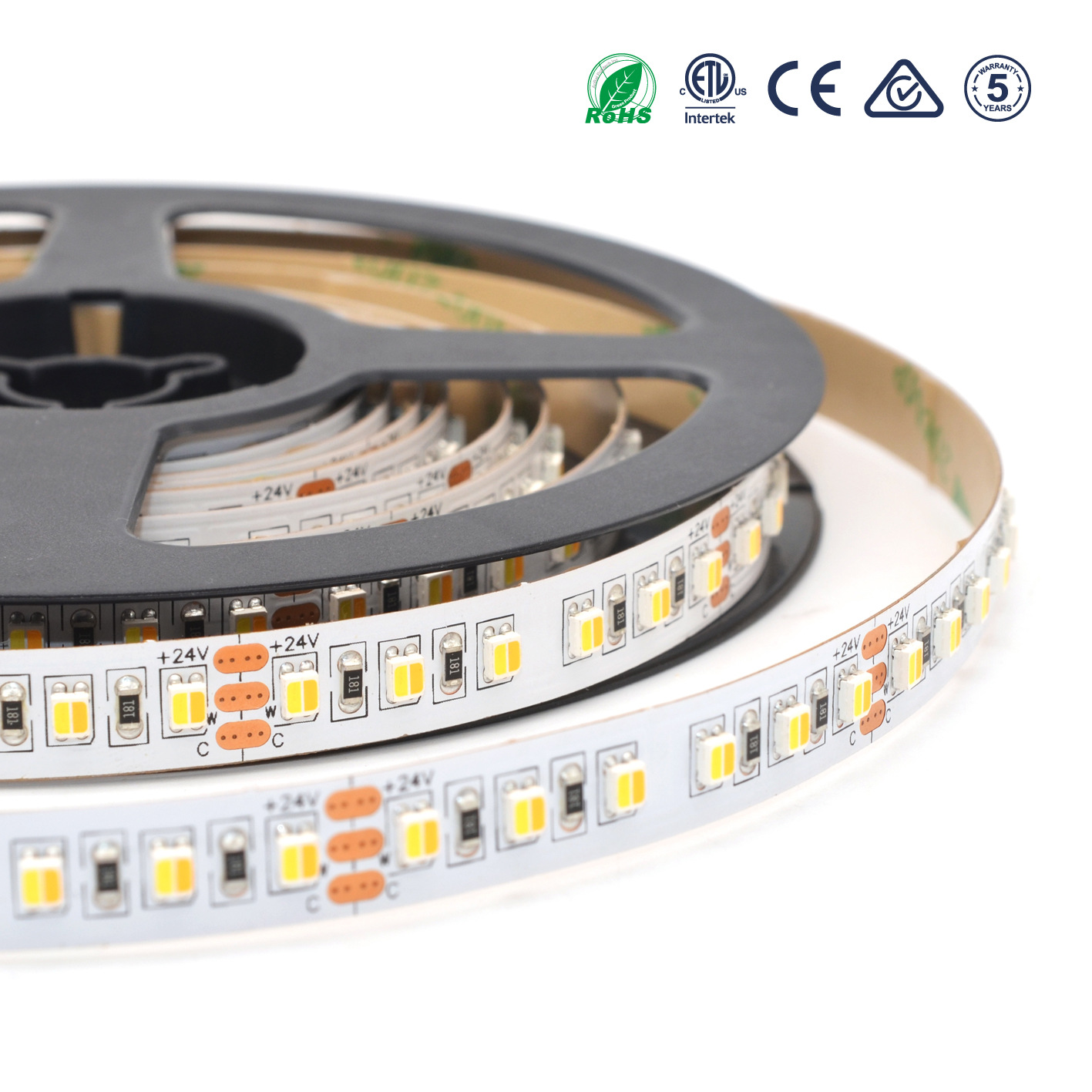

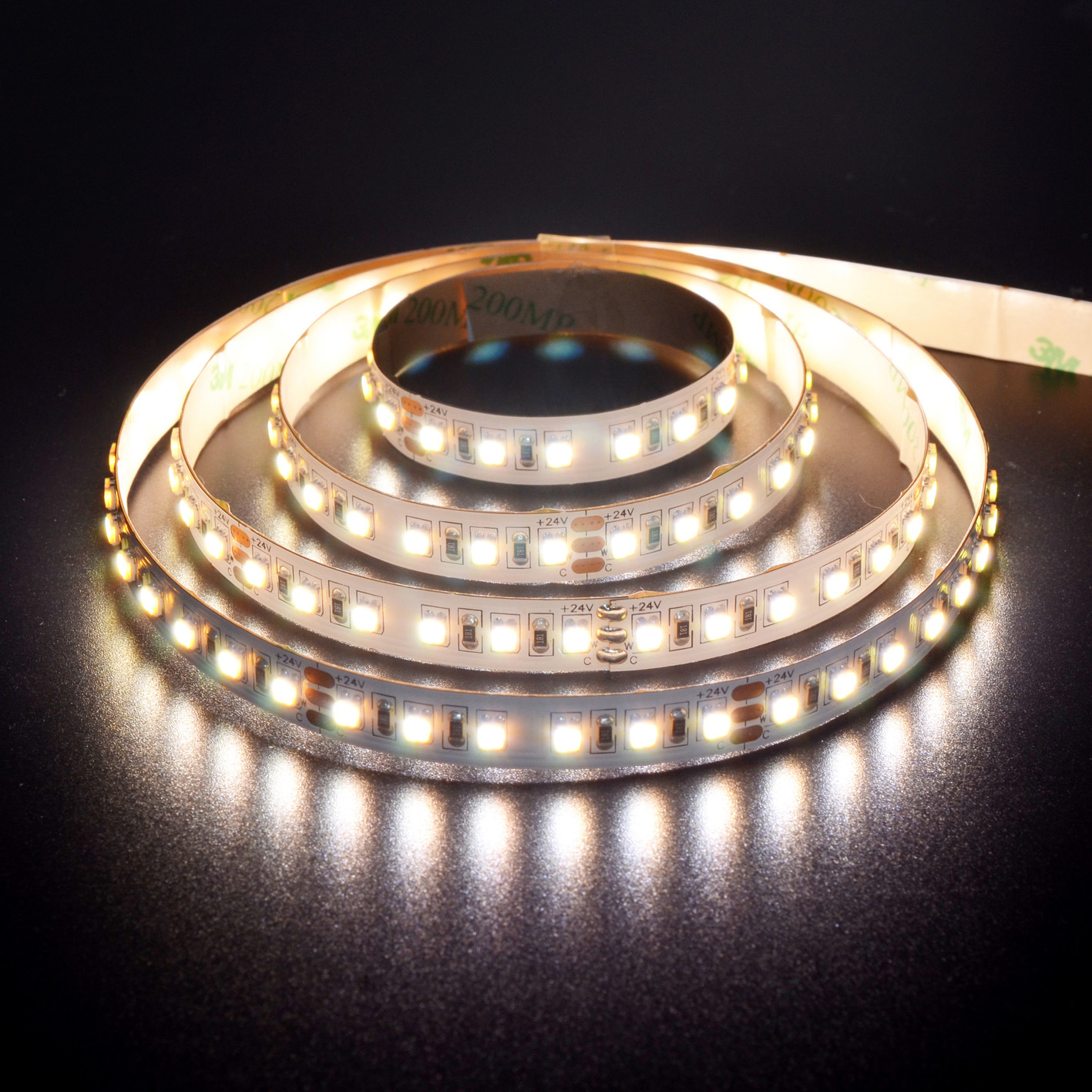

-This flexible LED strip soldered 120pcs SMD 3527 LED .
-Flexible PCB: White , PCB Width 8mm.Cutable each set of 3 LED
-Waterproof version (Silicon Tube coating : W12*H4mm. )
-DC 12V /24V constant voltage operation
-Voltage drop from start to end of 5 M ± 2V.
- Each end soldered a 3 Pin bare wire 22AWG at 15cm length
-customizable of length
Application:
1. Hotels,restaurants,Under cabinet lighting.
2. Shopping malls,various shops.
3. Coffee/wine bars, furniture light.
4. Cinemas, beauty centers . CCT adjustable 3528 LED stripCCT adjustable 3528 LED stripCCT adjustable 3528 LED stripCCT adjustable 3528 LED stripCCT adjustable 3528 LED strip
