Regular LED Strip

  • CCT adjustable 3528 LED strip
  • CCT adjustable 3528 LED strip
  • CCT adjustable 3528 LED strip
  • CCT adjustable 3528 LED strip
  • CCT adjustable 3528 LED strip
CCT adjustable 3528 LED stripCCT adjustable 3528 LED stripCCT adjustable 3528 LED stripCCT adjustable 3528 LED stripCCT adjustable 3528 LED strip

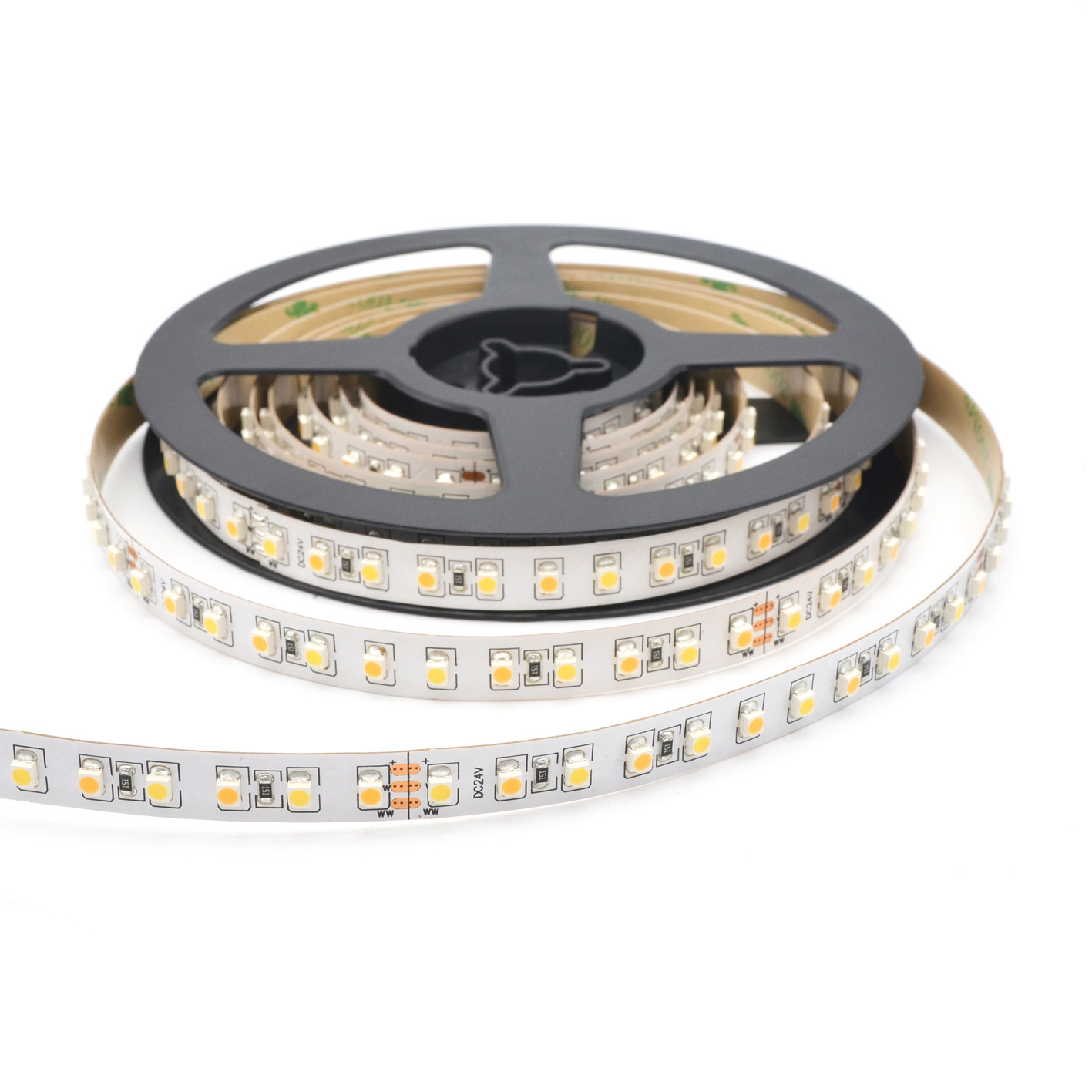

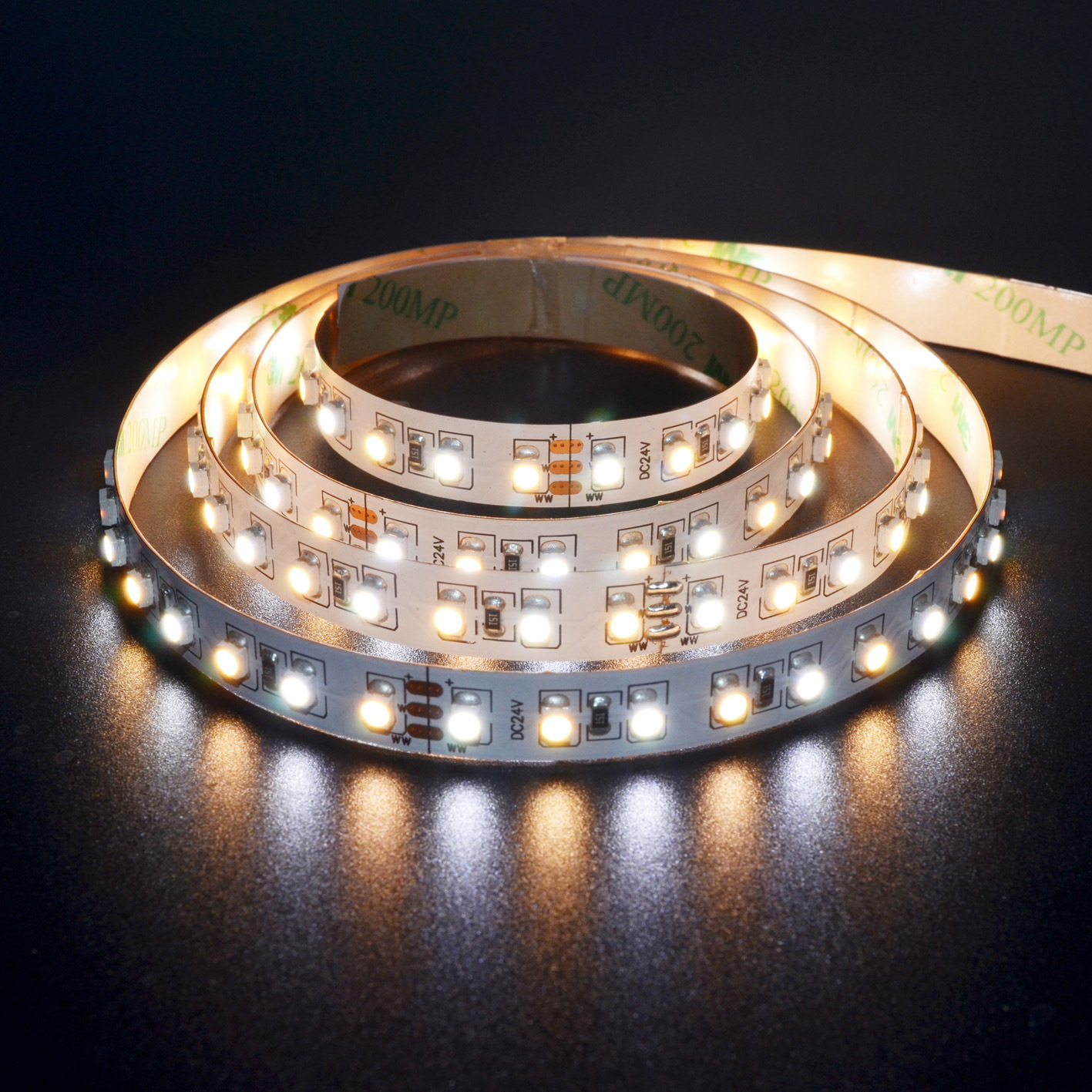

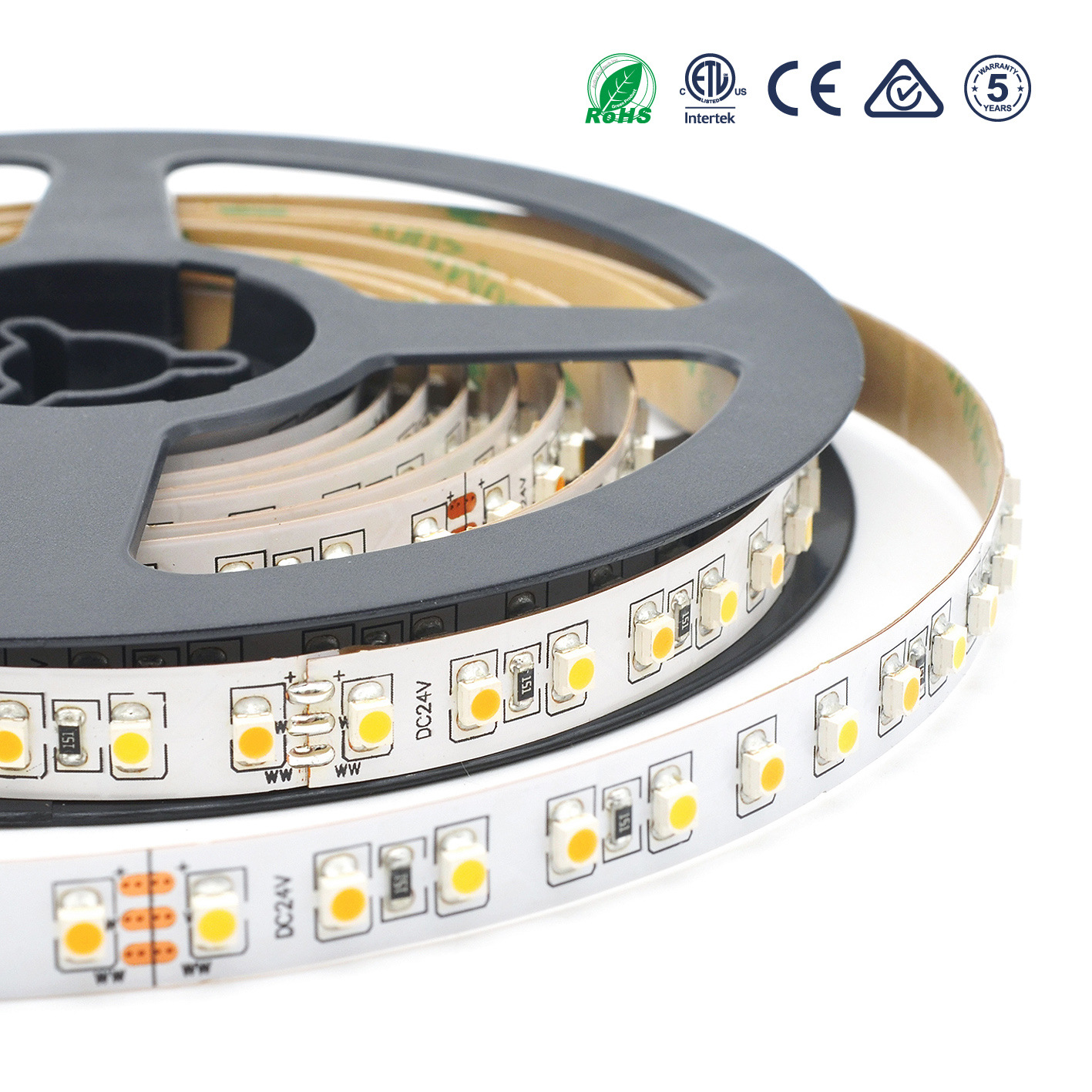

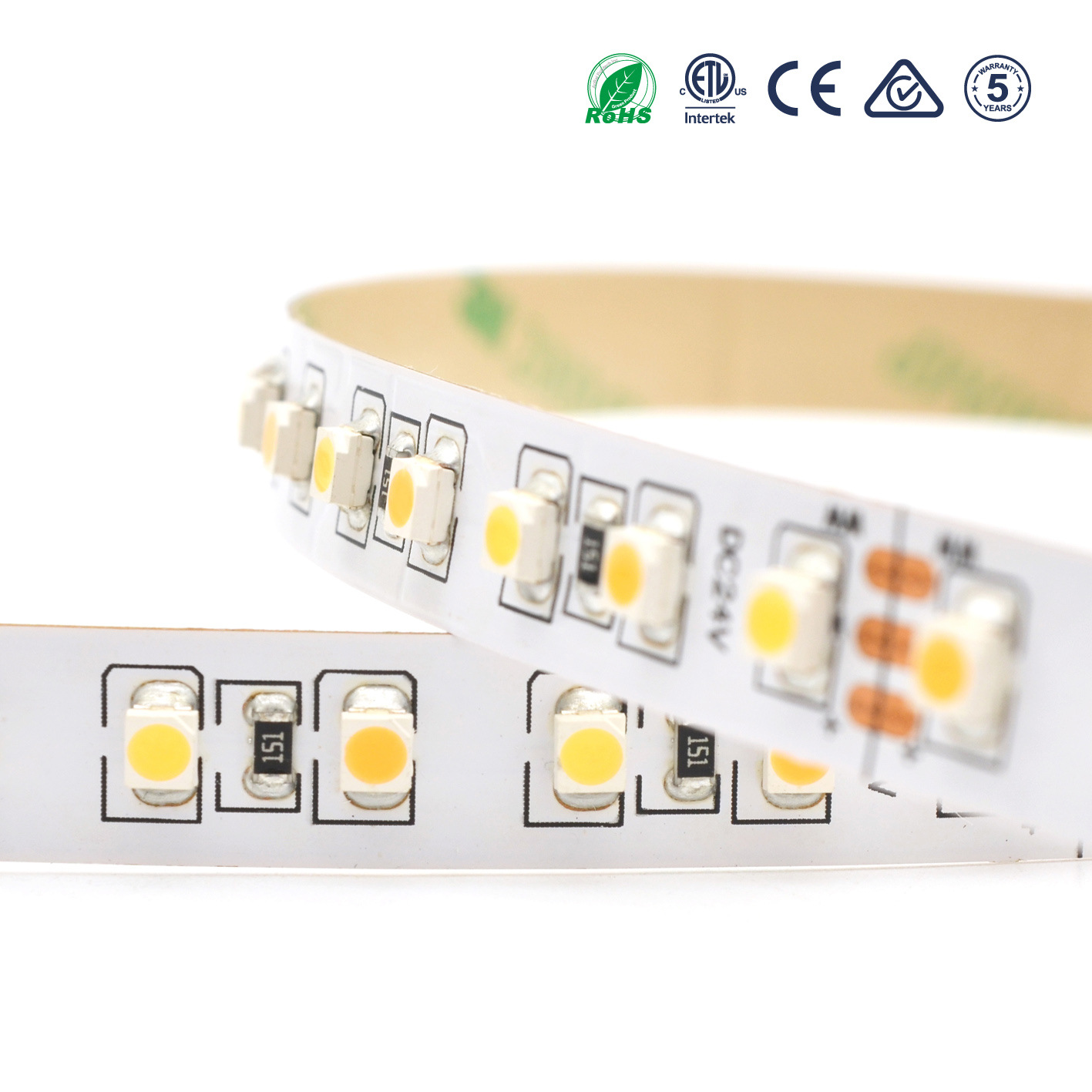

CCT adjustable 3528 LED strip

Product Parameter:


P/N

Size/mm

LED/Qty/m

Brand

Luminance/LED

Angle

Voltage

Wattage/M

IP Rate

MDR-C3528-100-120X

5000*10

3528/120pcs

Epistar

7-8LM

140

DC12V/24V

4.8-9.6W

IP20/68


Features :



-This flexible LED strip soldered 120pcs SMD 3014 LED .


-Flexible PCB: White , PCB Width 8mm.Cutable each set of 6 LED


 -Waterproof version (Silicon Tube coating : W12*H4mm. )


-DC 12V /24V constant voltage operation


-Voltage drop from start to end of 5 M ± 2V.


- Each end soldered a 3 Pin bare wire 22AWG at 15cm length


-customizable of length


Application:


1. Hotels,restaurants,Under cabinet lighting.


2. Shopping malls,various shops.


3. Coffee/wine bars, furniture light.


4. Cinemas, beauty centers . CCT adjustable 3528 LED stripCCT adjustable 3528 LED stripCCT adjustable 3528 LED stripCCT adjustable 3528 LED stripCCT adjustable 3528 LED strip
