WS2811 IC LED Strip Amplifier

Product description:
INQUIRY

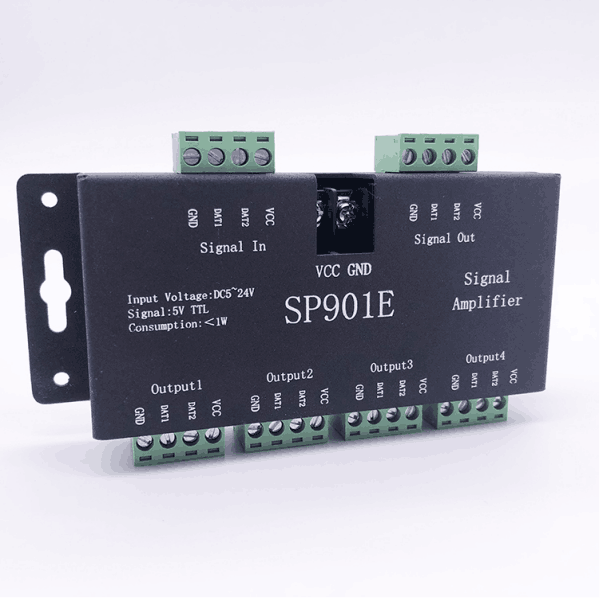

SP901ESignalAmplifieroperatinginstructions
1.Features:

1.DC5V~24Vwiderangeofworkingvoltage;
2.Compatiblewithallkindsof5V-TTLsignal;

3.Canbecascadedwithmultipleamplifiers.

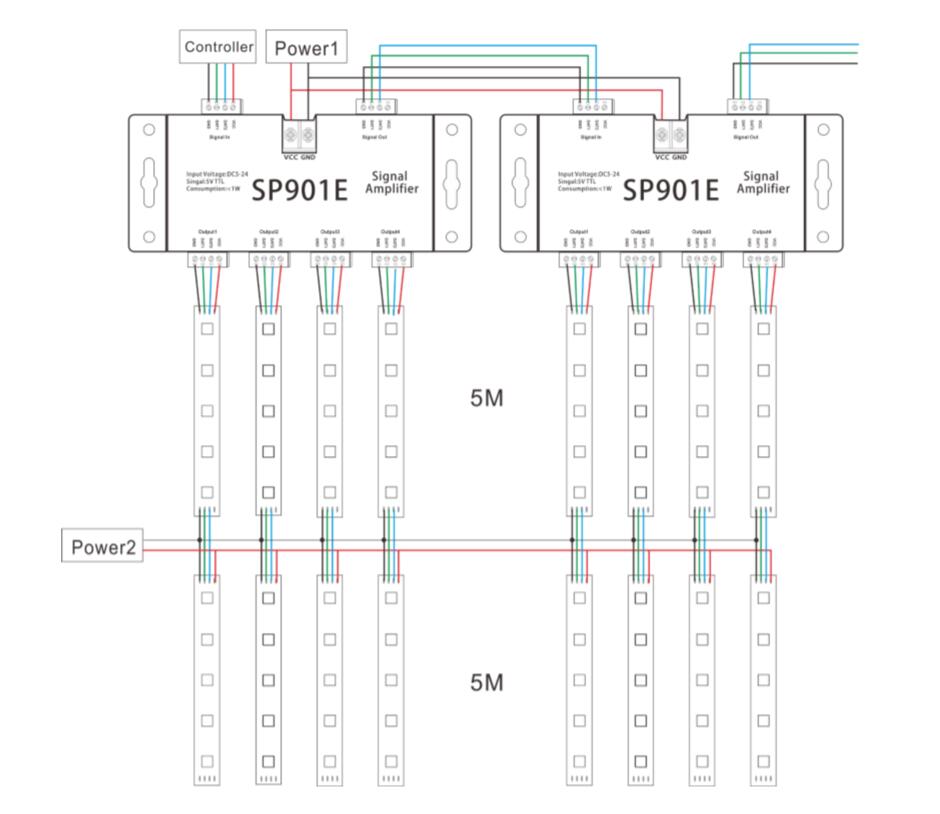

2.WireConnection：

3.Caution：

1.The input and output voltages are the same, if customer’s LED is not compatible with the output voltage , customer need to power the LED separatelyandconnectthenegativeelectrodetotheamplifier’sGND;
2.Thecurrentthroughtheamplifierislimited,whentheconsumptioncurrentishuge,customerneedtoincreasepowersupplyadditionally.
