LED Power supply

  • LPV-60-12
  • LPV-60-12
LPV-60-12LPV-60-12

LPV-60-12

Product Parameters:

MODEL

LPV-60-5

LPV-60-12

OUTPUT

DC VOLTAGE

5V

12V

RATED CURRENT

8A

4A

CURRENT RANGE

0~8A

0~4A

RATED POWER

40W

60W

RIPPLE&NOISE(max.)      Note.2

80mVp-p

120mVp-p

VOLTAGE TOLERANCE      Note.3

±8.0%

±5.0%

LINE REGULATION

±1.0%

LOAD REGULATION

±6.0%

±2.0%

SETUP,RISE TIME       Note.6

500ms, 20ms / 230VAC    5 at full load ; 00ms, 20ms / 115VAC (for 5~36V)

500ms, 30ms / 230VAC    500ms, 30ms / 115VAC at full load(for 48V)

HOLD UP TIME(Typ.)

50ms/230VAC           14ms/115VAC at full load

INPUT

VOLTAGE RANGE        Note.4

90~264VAC         127-370VDC

FREQUENCY RANGE

47~63Hz

EFFICINCY(Typ.)

76%

83%

AC CURRENT

1.2A/115VAC           1A/230VAC

INRUSH CURRENT(Typ.)

COLD START 60A(twidth=525us measured at 50% lpeak)at 230VAC

LEAKAGE CURRENT

0.25mA/240VAC

PROTECTION

OVER CURRENT

110~150% rated output power

Protection type:Hiccup mode,recovers automatically after fault condition is removed

OVER VOLTAGE

5.75~6.75V

13.8~16.2V

Protection type:Shut down o/p voltage,re-power onto recover


Features :

1. Constant voltage design
2. Universal AC input / Full range
3. Withstand 300VAC surge input for 5 seconds
4. Protections: Short circuit / Overload / Over voltage
5. Cooling by free air convection
6. Fully encapsulated with IP67 level(Note.8)
7. Fully isolated plastic case
8. Class power unit, no FG
9. Pass LPS
10. Suitable for LED lighting and moving sign applications(Note.7)
11. 100% full load burn-in test
12. Low cost, high reliability
13. 2 years warranty
  Application:
1. LED strip,led light bar.
2. LED tube,led pixel light.
3. Light source,led screen.
4. LED module,Other Electronics.

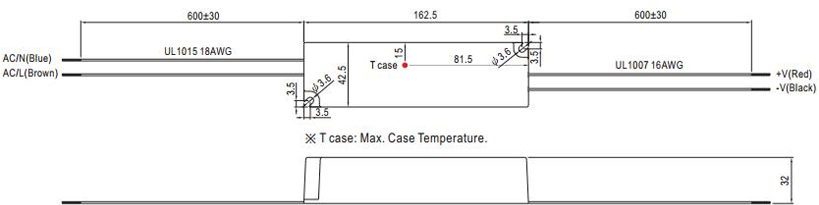

Size:


PREVIOUS:LRS-100-12 NEXT:T-8000A
